MATILDA CNC EDITOR
Matilda CNC is a free text editor for creating, editing, and checking syntax and simulating the execution of control programs for CNC machines. The main difference between Matilda CNC and other analogues is that, in addition to editing G-code directly, it is able to develop CNC programs (for certain types of processing) without using CAD and CAM apps, via the high-level programming language GCMC and inserting prepared blocks for typical operations
| Learn more |
Main Features
Powerful text editor
- Multi-document interface
- Line numbering
- Customusible syntax highlighting
- Customusible themes
- Unlimeted file size (Limited only by the amount of memory on your PC)
- Undo\redo
- Find\Repalace
- Non-printable characters highlighting
NC code generation for typical operations
- Possibility to expand the list of operations
- Parameters setting
- Milling serface
- Milling rectangular and round pockets
- Cutting circle / rectangle

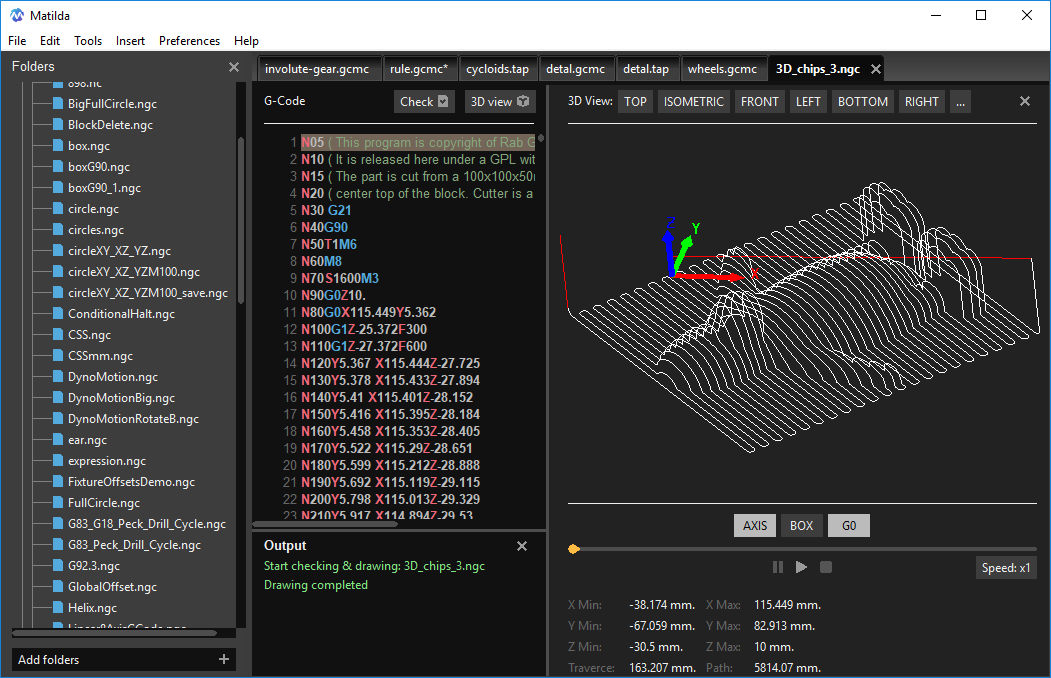

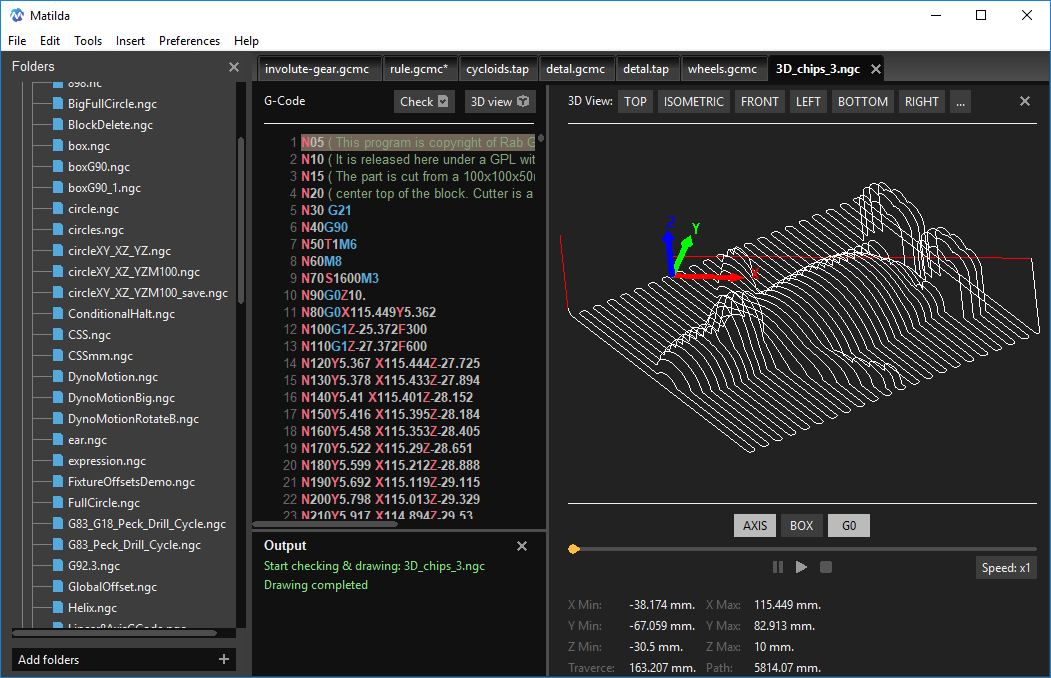

3D view and processingsimulation
- Show 3D toolpath
- Simulation of tool movement consistent with the G code
- Setting simulation speed
- Statistics
Syntax check
G-code and GCMC syntax checking.
Math Functions
- Translate\Scale\Set
- Rotate
Code Assist
Hints for G-Code and GCMC codes / functions
Documentation
A brief description of the editor itself can be read here.
Detailed description of the GCMC. Syntax, data types, function library, etc.
G-code reminder
Detailed description of the GCMC. Syntax, data types, function library, etc.
G-code reminder
Contacts
Authors:
Boris Berkhin - Matilda CNC editor
Bertho Stultiens - GCMC language
I will be grateful for any comments, ideas, and thoughts.
Please leave feedback me if something does not work or if you lack some functionality. Even if you think that it is complete shit, please let me know anyway
.
E-mail me at bberkhin@matildacnc.com or using the form below. The "e-mail" field is optional but if you want me to reply it is better to specify.
Boris Berkhin - Matilda CNC editor
Bertho Stultiens - GCMC language
I will be grateful for any comments, ideas, and thoughts.
Please leave feedback me if something does not work or if you lack some functionality. Even if you think that it is complete shit, please let me know anyway
.
E-mail me at bberkhin@matildacnc.com or using the form below. The "e-mail" field is optional but if you want me to reply it is better to specify.
By clicking the button you consent to the processing of personal data.
Download ZIP archive and unzip it into a separate directory. The program does not use windows registry, does not require installation of any additional components, does not collect any statistics and does not send any information to the Internet.
Current version: 0.1.259
Current version: 0.1.259
